Object Attachments in R-COM Gateway

Object Attachments let you associate binary files, such as documents, images, PDFs, or exports, with an individual Object in R-COM Gateway.

Attachments are stored through a configured storage provider and linked to the Object they belong to. Once attached, a file can be viewed, downloaded, or managed directly from the Object, or accessed programmatically from external systems such as a Custom UI or a third-party application.

There are two ways to add and retrieve attachments:

  1. From the Object stock view — a manual, UI-driven workflow for end users.
  2. From an external system via the API — a programmatic workflow for integrations, Custom UIs, and automations.

This article covers both.

Prerequisites​

Before you can attach files to an Object, make sure the following are in place:

  • The Object Group allows attachments. Attachment support is a per–Object Group setting and must be enabled before any files can be added.
  • A storage provider is configured and linked to the Object Group. The storage provider determines where the binary file is physically stored. See External Storage Provider for setup details.
info

If no external storage provider is added and attachments are still enabled on the Object Group, the system falls back to storing attachments in the gateway database. An external storage provider is only required when you want files stored outside the gateway database.

warning

If the Object Group does not allow attachments, the Attachments section will not appear in the edit view, and API upload/link calls will be rejected.

Method 1: Upload an Attachment from the Stock View​

Use this method when a user needs to add a file to an Object directly from the R-COM Gateway interface.

Step 1: Select the Object​

Open the Object Group in Stock View and locate the Object you want to add an attachment to. Select it to open its details.

Step 2: Confirm the Object Group Allows Attachments​

Make sure the Object Group is configured to allow attachments (see Prerequisites). If attachments are not enabled, no Attachments section will be available in the next step.

Step 3: Open Edit Object → Upload Files​

With the Object selected, open Edit Object and navigate to the Upload Files section. Choose the file you want to upload and confirm. The file is stored through the configured storage provider and immediately linked to the Object.

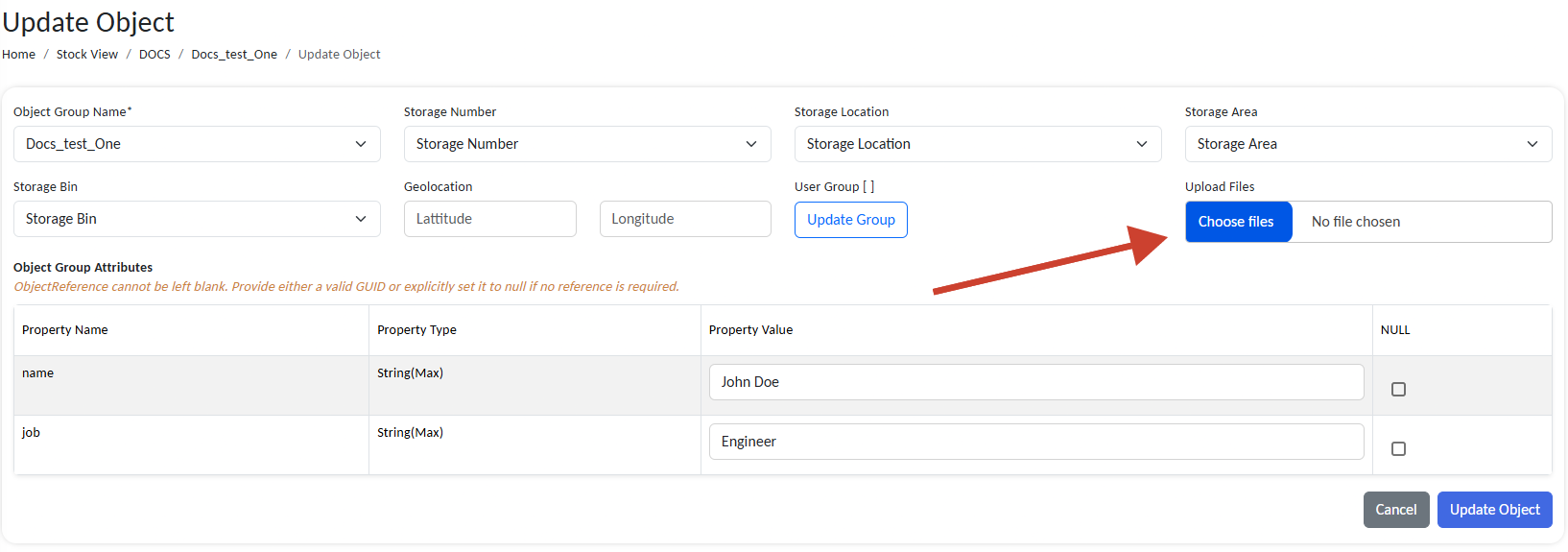

Add an attachment from the stock view

Upload a file from Edit Object → Upload Files

Step 4: View the Attachment​

Once uploaded, the attachment appears in the Object's attachment list, where it can be viewed, downloaded, or removed.

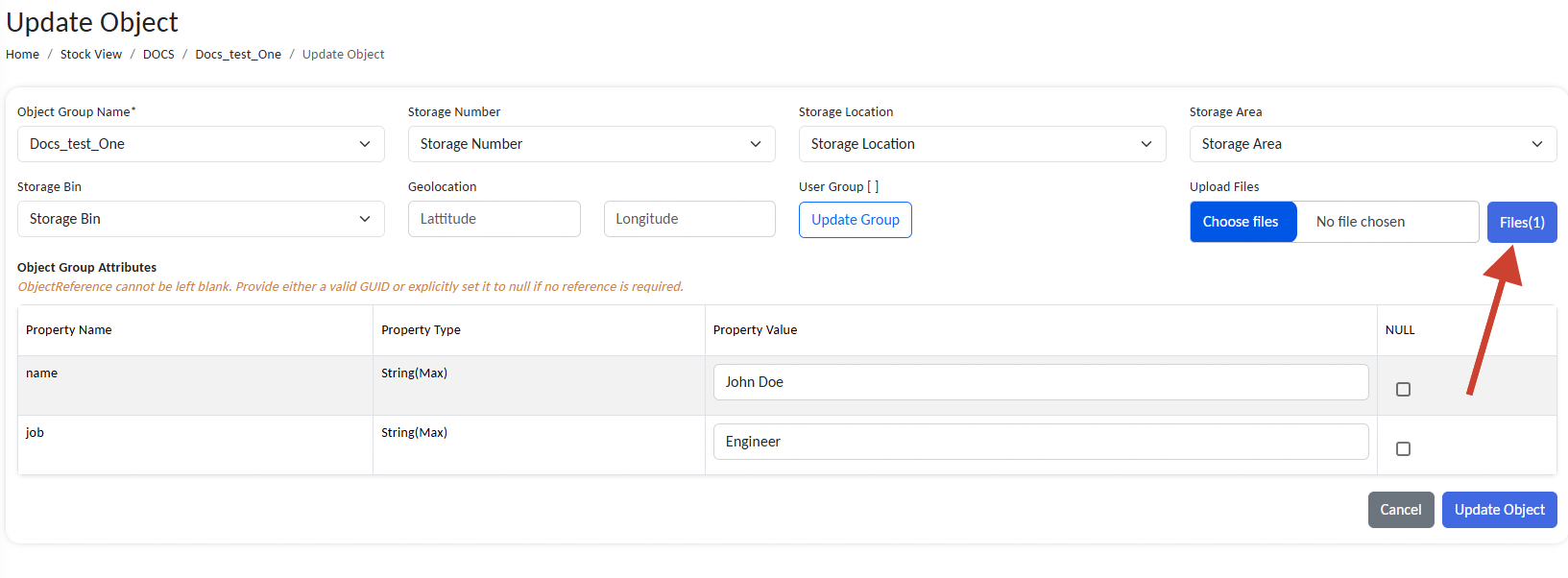

View attachments in the stock view

Attachments listed under the Object

Step 5: Download the Attachment​

To retrieve a file, select it from the Object's attachment list and download it.

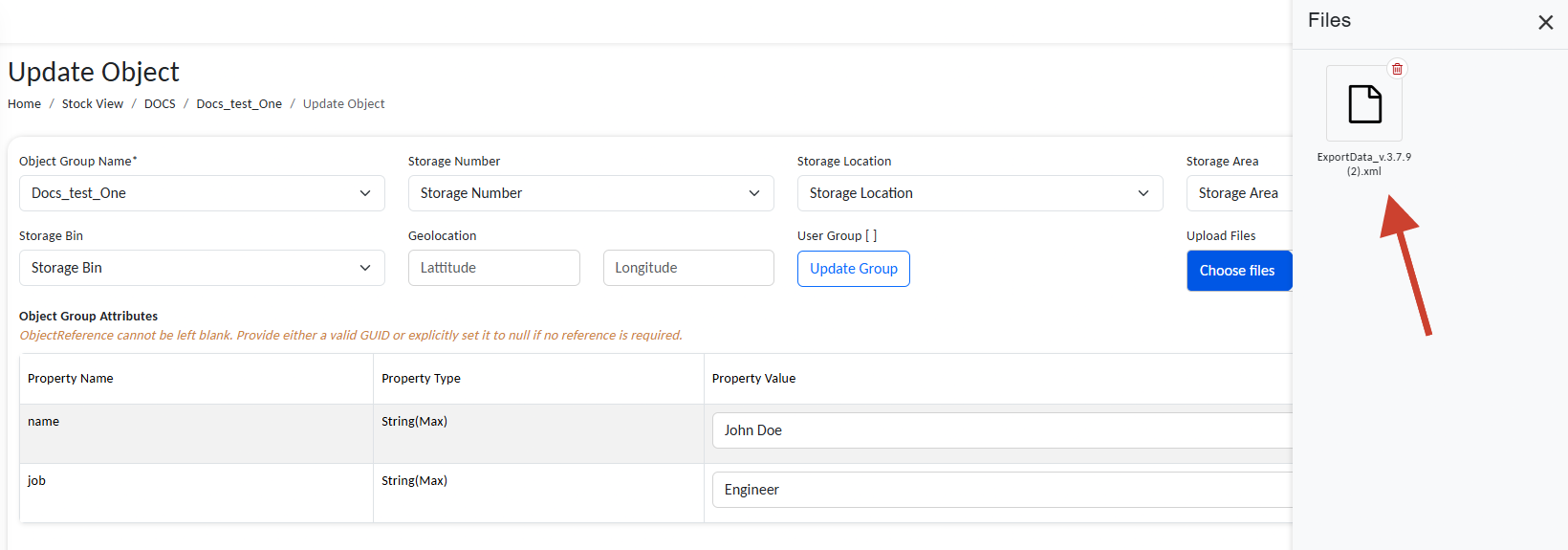

Download an attachment from the stock view

Download a file from the Object's attachment list

Method 2: Upload and Download Attachments via the API​

Use this method when files are managed from an external system — for example, a Custom UI, a mobile client, or a third-party integration. Instead of using the edit view, you upload the file to the storage provider and then link the returned file ID to the Object.

The end-to-end flow has three stages:

  1. Upload the file to the storage provider and get back an attachment/file ID.
  2. Link that file ID to the target Object (in a workflow, using the LinkAttachment action).
  3. Download the file later using the attachment/file ID.
info

Both the upload and download endpoints require the storage provider ID of the provider linked to the selected Object Group. Copy it from the Manage Storage Provider page — use the provider ID attached to the designated Object Group.

Authentication

For both upload and download:

  • Calls made from a Custom UI do not need an authorization token — the request is validated automatically.
  • Calls from any other external system require an access token. Create one using the External Login API and pass it as a Authorization: Bearer <token> header.

Step 1: Upload the File​

Upload the file to the selected storage provider. The response returns an attachment/file ID that you will use to link and later download the file.

POST https://example-gateway.com/RCOMAPI/api/binary-storage/upload

Content type:

multipart/form-data

Fields:

file=<selected file>
storageProviderId=<Storage Provider ID registered in gateway>

Optional header:

Authorization: Bearer <token>

Example:

curl -X POST "https://example-gateway.com/RCOMAPI/api/binary-storage/upload" \
  -H "Authorization: Bearer <token>" \
  -F "file=@example.pdf" \
  -F "storageProviderId=<Storage Provider ID>"

The response includes an attachment/file ID, for example:

{
  "attachmentId": "<Attachment ID>"
}

An uploaded file is not yet attached to an Object — it only exists in the storage provider. To attach it, link the returned file ID to the target Object.

In a workflow, use the LinkAttachment action, passing the file ID from Step 1 as the METADATA_ID and the target Object's OBJECT_ID. The action validates that the Object, group, metadata, and provider are consistent, then confirms the file and returns the attachment ID.

For full parameter details, see the LinkAttachment (V1) workflow action.

Step 3: Download the File​

Once a file has an attachment/file ID, download it directly from the storage provider.

If you need to discover the attachment IDs for an Object first, use the GetObjectAttachments (V1) workflow action, which returns attachment metadata (filename, type, and identifiers) for a given OBJECT_ID.

GET https://example-gateway.com/RCOMAPI/api/binary-storage/download/{attachmentId}

  • Replace {attachmentId} with the attachment/file ID.

  • Authorization header is optional and only required when the gateway enforces authentication:

    Authorization: Bearer <token>

Example:

curl -X GET "https://example-gateway.com/RCOMAPI/api/binary-storage/download/<Attachment ID>" \
  -H "Authorization: Bearer <token>" \
  --output example.pdf

The response returns the binary file stream with the correct Content-Type, and typically a Content-Disposition header carrying the original filename.

Choosing the Right Method​

MethodBest For
Stock view (Method 1)Manual, one-off uploads by end users in the UI.
API (Method 2)Custom UIs, mobile clients, and system integrations.

Best Practices​

  • Enable attachments deliberately. Only allow attachments on Object Groups that actually need them, to keep storage usage and permissions predictable.
  • Match the storage provider to the Object Group. Always use the storage provider ID linked to the designated Object Group when uploading or downloading via the API.
  • Keep tokens secure. When authentication is enabled, protect bearer tokens and never hard-code them in client-side code.
  • Preserve filenames and content types. Rely on the Content-Type and Content-Disposition headers returned on download so files open correctly on the client.
